Product Overview

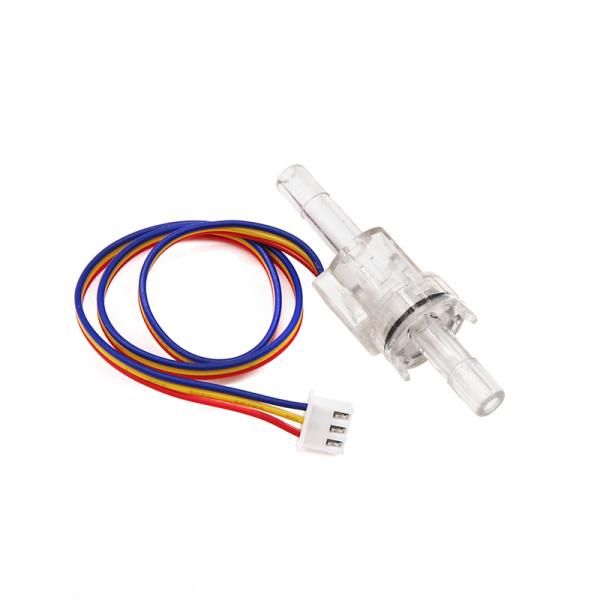

The DIJIANG 6.3mm Tube Transparent Hall Effect Flowmeter (Model No. ZJ-TM02) is a high-quality flow measurement solution designed for precise liquid flow monitoring and control. Featuring food-grade PC and POM construction, this water flow sensor switch is ideal for applications requiring accurate and reliable fluid metering.
Key Features
- Connection Size: 6.3mm outer diameter tube
- Core Technology: High-precision Hall effect turbine
- Durability: Robust POM construction for long service life
- Maintenance: Easy installation and maintenance
- Customization: OEM/ODM services supported
Technical Specifications
- Model No.: ZJ-TM02
- Material: POM
- Operating Voltage: 3.5 - 24 VDC
- Working Current: < 15 mA
- Liquid Temperature: < 80°C
- Accuracy: +/- 3%
- Max Pressure: 0.8 MPa
- Cable Connector: XH-3P, 30 cm
- Wiring Color Code: RED (VCC), YELLOW (SIGNAL), BLUE (GND)
Flow Parameters
- Outer Diameter: 6.3 mm
- Inner Diameter Options & Flow Rates:
- 1.2 mm ID: Flow Rate 0.05 - 1 LPM
- 2.5 mm ID: Flow Rate 0.3 - 4 LPM
Flow Pulse Formulas
- For 1.2 mm Inner Diameter: 86 × Q = 5160 Pulses/Liter
- For 2.5 mm Inner Diameter: 43 × Q = 2580 Pulses/Liter
Technical Highlights
- Accuracy: Accurate and reliable flow measurement
- Temperature: Wide operating temperature range
- Efficiency: Low pressure drop design
- Compatibility: Works seamlessly with various control systems
